Field Skills

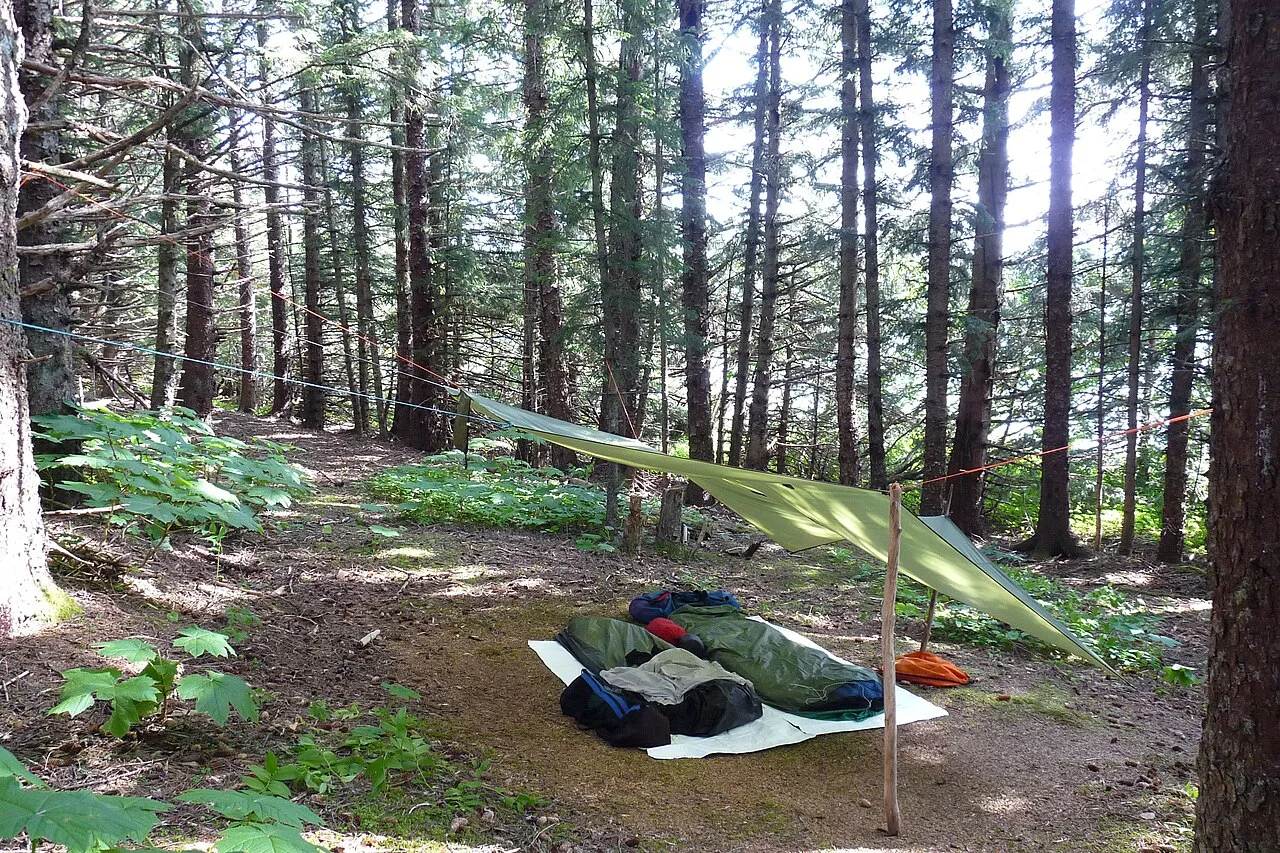

Pitch a Diamond Tarp Shelter Using a Siberian Hitch
This skill teaches you to construct a robust, wind-shedding shelter using a tarp and a single continuous ridgeline. The diamond tarp pitch offers significant protection from wind and rain by orienting the tarp's narrowest points into the elements, reducing its profile. Central to this setup is the Siberian Hitch, a knot that allows for easy, single-pull release even under tension, making take-down simple and efficient. Mastering this method provides a quick, adaptable, and secure shelter option for various outdoor conditions, prioritizing stability and ease of deployment when time or weather is a factor.
Topic summary
This skill teaches you to construct a robust, wind-shedding shelter using a tarp and a single continuous ridgeline. The diamond tarp pitch offers significant protection from wind and rain by orienting the tarp's narrowest points into the elements, reducing its profile. Central to this setup is the Siberian Hitch, a knot that allows for easy, single-pull release even under tension, making take-down simple and efficient. Mastering this method provides a quick, adaptable, and secure shelter option for various outdoor conditions, prioritizing stability and ease of deployment when time or weather is a factor.
Key takeaways
- The ridgeline feels taut and does not visibly sag.
- The tarp fabric is stretched smoothly, with no major wrinkles or flapping.
- The shelter maintains its shape consistently in light to moderate wind.
- Water beads and runs off the tarp surface without pooling.
- Avoid: Not selecting strong, healthy anchor points for the ridgeline.
- Avoid: Insufficient tension on the ridgeline, leading to sag and poor wind resistance.
Intended uses
- Field Skills skill (Intermediate, ~8 min practice)
- Requires: Tarp (min. 8x10 ft recommended), Cordage (50-75 ft, 3-5mm diameter), Stakes (4-6), Carabiner or prusik loop
Climate suitability
Forest, open country, alpine (below tree line)
Verification notes
Author: Wild10 Editors. Last updated September 15, 2026.
Required tools
- Tarp (min. 8x10 ft recommended)
- Cordage (50-75 ft, 3-5mm diameter)
- Stakes (4-6)
- Carabiner or prusik loop
Step-by-step
Locate two sturdy anchor points (trees or stakes) approximately 10-15 feet apart, choosing the highest point for the windward side if possible.
Why: Strategic placement maximizes protection and stability against prevailing conditions.
Run your cordage between the two anchor points, securing one end with a fixed knot like a bowline and leaving sufficient slack for tensioning.
Why: A secure anchor ensures the foundational strength of your entire shelter system.
Form a Siberian Hitch loop with the working end of the cordage, passing it around the second anchor point and back through itself.
Why: The Siberian Hitch allows for powerful tensioning and quick, easy release.
Attach the tarp's center grommet to the ridgeline using a carabiner or prusik knot, ensuring it slides freely.
Why: A free-sliding attachment permits easy adjustment of the tarp's position along the ridgeline.
Pull the free end of the Siberian Hitch to tension the ridgeline until taut, then stake out the two remaining tarp corners downwind, opposite the ridgeline attachment.
Why: Tensioning the ridgeline first establishes the primary structural integrity of the diamond pitch.
Adjust the ridgeline tension as needed by pulling the tag end of the Siberian Hitch, then secure the remaining two corners of the tarp to the ground or other anchors.
Why: Securing all corners ensures the tarp maintains its shape and sheds water and wind efficiently.
Inspect all anchor points and tension to ensure the tarp is stable and shedding water effectively.
Why: A final check confirms the shelter's readiness to withstand the elements.
Tip: For cold weather or rough terrain, carry extra cordage to create longer guylines, allowing more flexibility in anchor selection.
Common mistakes
- Not selecting strong, healthy anchor points for the ridgeline.
- Insufficient tension on the ridgeline, leading to sag and poor wind resistance.
- Orienting the wide side of the tarp into the wind, reducing shelter stability.
- Using knot types that are difficult to release under load or in cold conditions.
Troubleshooting
- If the tarp sags, re-tension the Siberian Hitch and ensure all corner tie-outs are firm.
- If the shelter feels unstable in wind, check anchor points and consider lowering the pitch slightly.
- If water pools, adjust the ridgeline and corner tension to create a steeper angle for runoff.
- If the Siberian Hitch slips, ensure enough wraps are made and the knot is properly dressed.
Field practice drill
Practice setting up and breaking down the diamond tarp with a Siberian Hitch ten times in varying conditions to build muscle memory.
Indicators of success
- The ridgeline feels taut and does not visibly sag.
- The tarp fabric is stretched smoothly, with no major wrinkles or flapping.
- The shelter maintains its shape consistently in light to moderate wind.
- Water beads and runs off the tarp surface without pooling.
